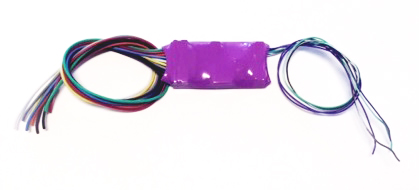

SoundTraxx TSU-2200 Digital Sound Decoder

Features :

Dimensions: 35 x 18 x 6mm Max. Motor Stall Current: 2A Max.

Function Current: 100mA (each output)

Function Outputs: 6 Audio Amplifier: 2 Watts, 8-Ohm Load

DCC Track Voltage: 7.5V – 22V

Speakers :

The Tsunami2 line is equipped with powerful new amplifiers; therefore, it is important to choose a capable speaker to use with these decoders. Below you will find a list of speakers that are compatible with the TSU-2200.

* Note:

The Mini Cube Speaker, P.N. 810154, can be used when wired in series with another Mini Cube Speaker.

810153
28mm Round Speaker

810154
*15 x 12 x 11.5mm Mini Cube

810078
40 x 28.5mm Oval Speaker

810129
23mm Square Mega Bass Speaker

810113
35 x 16mm Oval Speaker

810130
27mm Round Mega Bass Speaker

810115
35 x 20mm Oval Speaker

810131
28mm Square Mega Bass Speaker
